FEATURES

ENHANCED DURABILITY: Constructed from high-strength solid steel, this trolley assembly is both impact-resistant and zinc galvanized, offering superior protection against rust and corrosion for long-lasting performance.

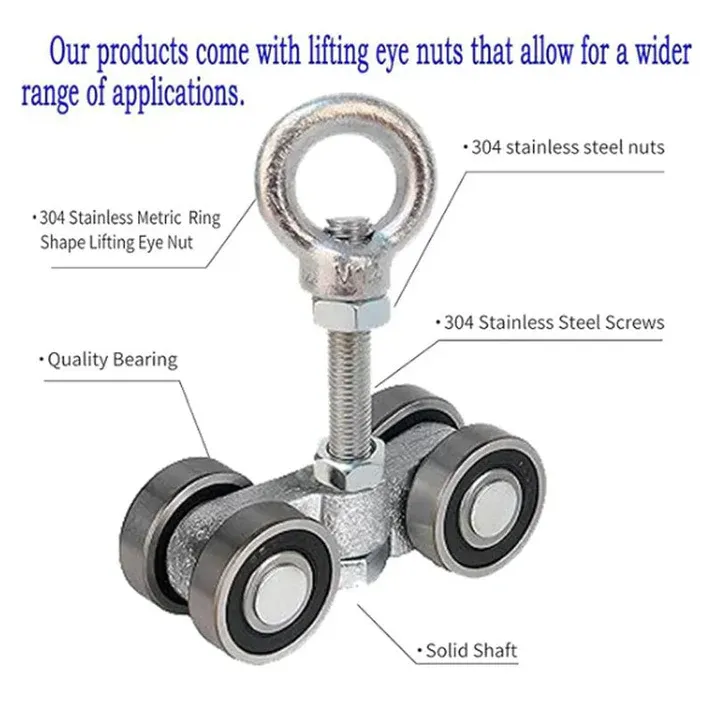

STABLE AND QUIET OPERATION: Featuring a solid bearing steel pin shaft and deep groove ball bearings, this assembly ensures stable, smooth, and noise-free movement along the strut channel, even under heavy loads.

LONG-TERM RELIABILITY: Each set includes two beam trolleys designed for durability and consistent performance. The galvanization ensures smooth operation and low noise throughout the lifespan of the trolleys.

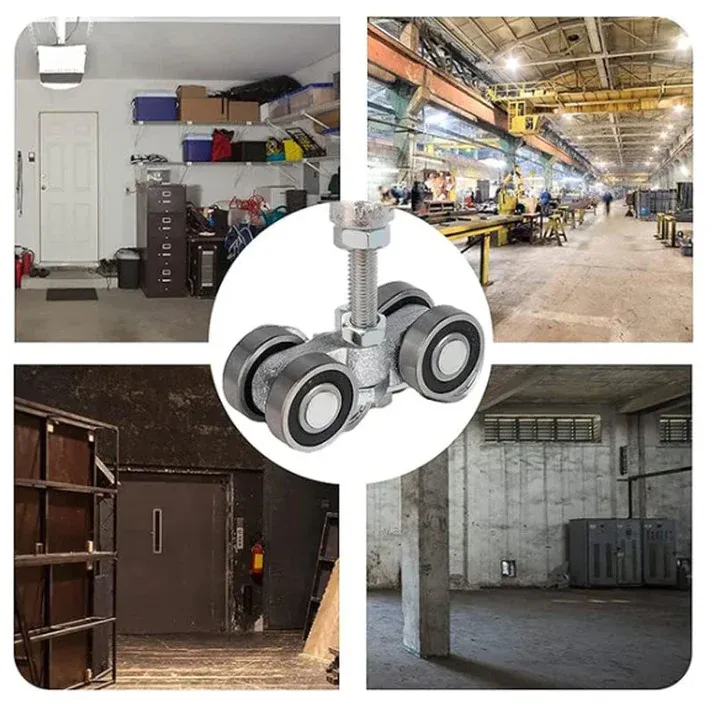

CORROSION-RESISTANT FINISH: The zinc galvanized finish offers excellent protection against environmental factors, making it suitable for both indoor and outdoor use, even in harsh conditions.

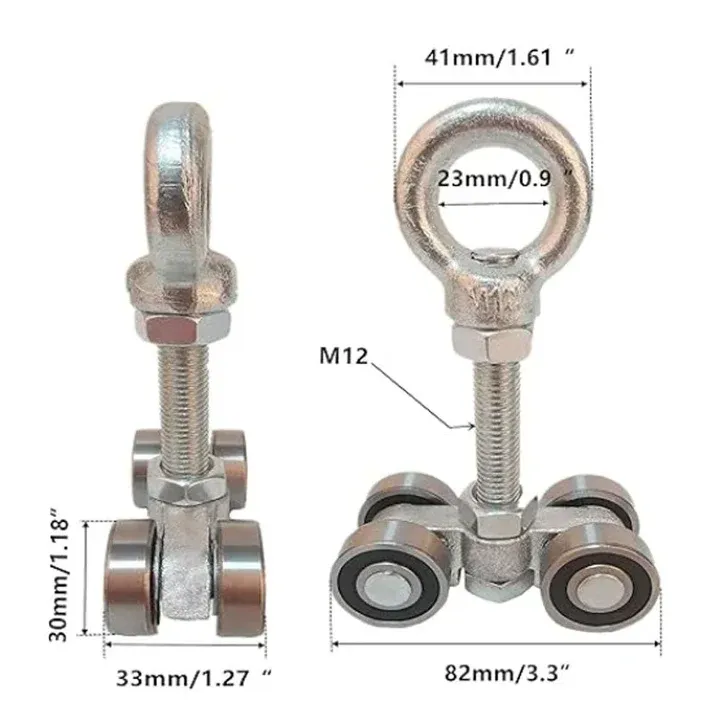

Versatile Sizing：This Trolley features an M12 (3/8 inch) bolt, 97mm (3.8 inches) in length, and fits 1-5/8 inch wide strut channels. It handles loads up to 650 lbs at 100 rpm, with a break strength of 5511 lbs. （For manual measurements, please allow 1-2 cm for errors.）

SPEC

Material: Galvanized Steel

Design Load Capacity:

320 lbs at 600 rpm

450 lbs at 300 rpm

650 lbs at 100 rpm

Break Strength: 5511 lbs

Package includes: 2 *  Taller Strut Channel Trolley Assembly

NOTES

For manual measurements, please allow 1-10 mm for errors.

Verify compatibility with your strut channel system before installation.
